Poor trailer seal
Mounted directly to the wall as designed, the shelters would not have sealed properly against trailers, leaving gaps that let in weather, dust and pests.
All Case Studies
Case Study — Dock Shelter & EOD Leveler Installation
Custom-Fit Dock Shelter & Edge-of-Dock Leveler Installation for an Ontario Property Manager
When the dock shelters a property manager purchased didn't fit their building, InSev Tech engineered a custom solution on site and delivered a fully sealed, working loading dock in three days.
Ontario, CA September 22, 2026 2 EOD Levelers + 2 Dock Shelters
Project Snapshot
- Location
- Ontario, California
- Client
- Commercial property management company
- Scope
- Install 2 edge-of-dock levelers and 2 dock shelters (customer-supplied)
- InSev Tech services
- Forklift positioning, curb steel fabrication and install, bumper welding, mounting anchors and hardware, custom-built shelter extension frames
- Timeline
- 3 days on site
- Key challenge
- New dock shelters did not match the dock's projection dimensions
The Client
A property manager who buys buildings, not dock equipment.
The client is a commercial property management company responsible for an industrial building in Ontario, California. Like many property managers, their team is skilled at running buildings, not at specifying loading dock equipment.
They had purchased two edge-of-dock levelers and two dock shelters on their own and needed a partner to get everything installed quickly and correctly so their tenant's dock operations could run without interruption.
The Challenge
The shelters did not match the dock's projection dimensions
The edge-of-dock levelers went in as planned. The problem surfaced on Day 2 during dock shelter fit-up. On paper, the client had three unattractive options: return the shelters and reorder, live with a poor seal, or find an installer willing to solve the problem instead of walking away from it.
Weeks of delay
Returning the shelters and reordering the correct projection would have pushed the tenant's dock work out by weeks.
Equipment already paid for
The property manager had purchased the levelers and shelters without a site survey, so the cost was already committed.
The InSev Tech Solution
A custom mounting frame built in the field
Rather than stop the job, the crew assessed the gap between the shelter design and the dock's actual geometry and built a custom mounting frame to close it. Using 2x4 lumber, the team framed out the dock opening to extend each shelter off the wall to the correct projection, then mounted the shelters onto the new frames — so the shelters seal against trailers using the equipment the client had already paid for.
- 1
Day 1 — Edge-of-dock levelers
Positioned the 2 customer-supplied edge-of-dock levelers with an NLY-supplied forklift, installed new curb steel to support each unit, and welded the dock bumpers in place.
- 2

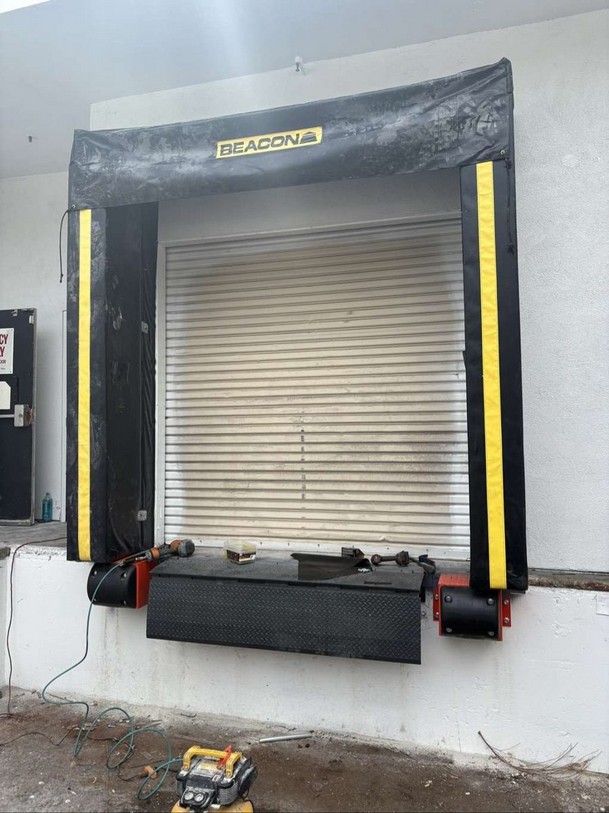

Day 2 — Dock shelters
Positioned the 2 customer-supplied dock shelters by forklift with all mounting anchors and hardware supplied by InSev Tech. During fit-up the crew found the shelters did not match the dock's projection dimensions.
- 3
Day 3 — Custom fit and completion

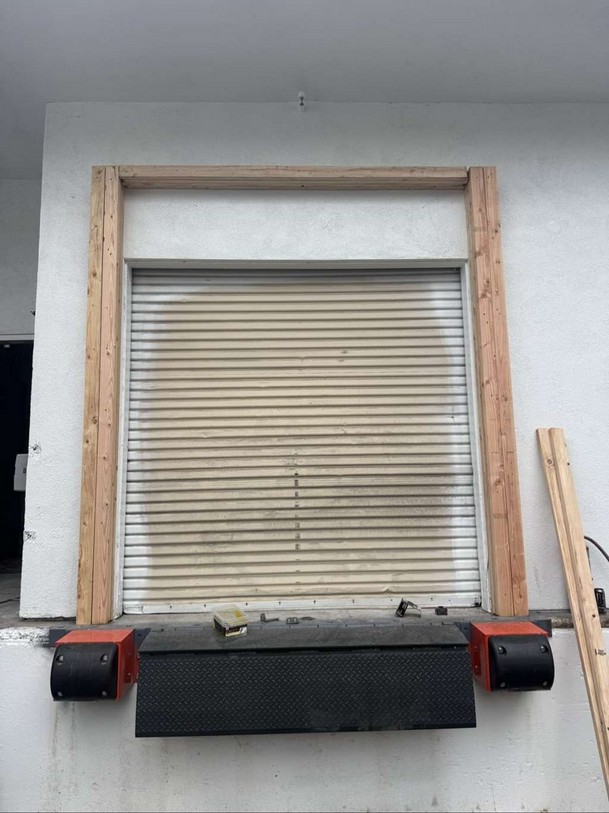

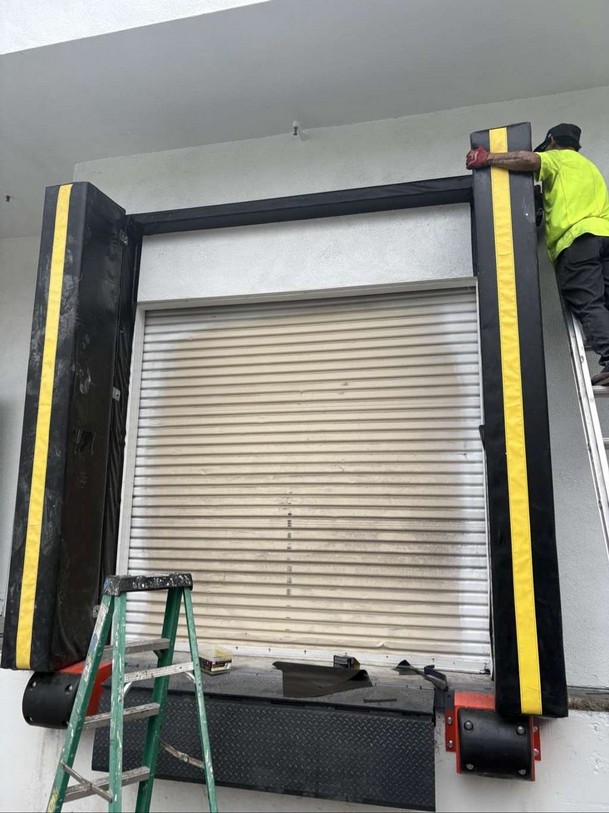

The crew returned and built a custom 2x4 timber frame to extend each shelter off the wall to the correct projection, then mounted the shelters on the frames and completed the job.
Project in Photos
Results

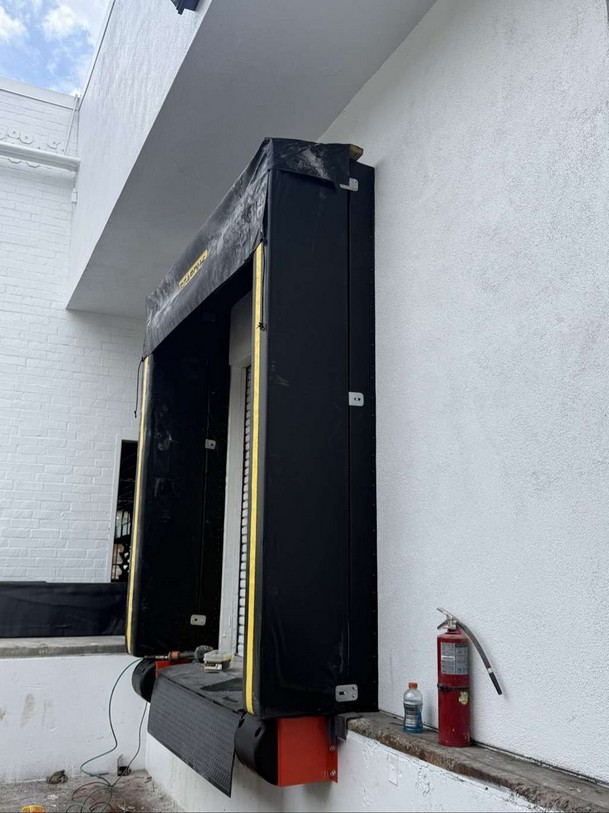

A fully sealed, working loading dock in three days.
- Both edge-of-dock levelers and both dock shelters installed and operational in 3 days.
- No reorder and no weeks of delay — the existing shelters were adapted on site instead of being returned.
- The custom frame positions each shelter at the correct projection for a proper trailer seal.
- New curb steel supports each leveler, with bumpers welded in place to protect the dock face.
- One accountable partner: InSev Tech supplied the forklift, steel, anchors and hardware.
3 Days
On site, start to finish
Custom Frame
Correct shelter projection
No Reorder
Existing equipment adapted
Why It Matters for Property Managers
Contact us before you buy.
Property managers aren't expected to be loading dock specialists, and they shouldn't have to be. When equipment is bought without a site survey, dimensional mismatches like this one are common. What sets InSev Tech apart is what happens next: our technicians are trained to adapt, fabricate and customize in the field so the job gets finished right, on the client's timeline.
Our advice for future projects: a quick site visit to measure dock height, door opening and wall projection ensures the equipment you order fits the first time, and we can help you select the right product for your building.
